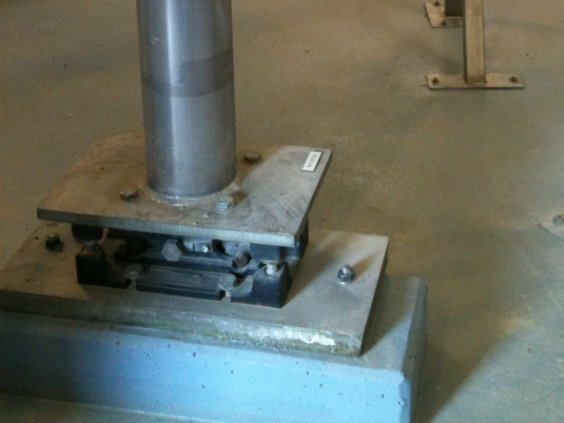

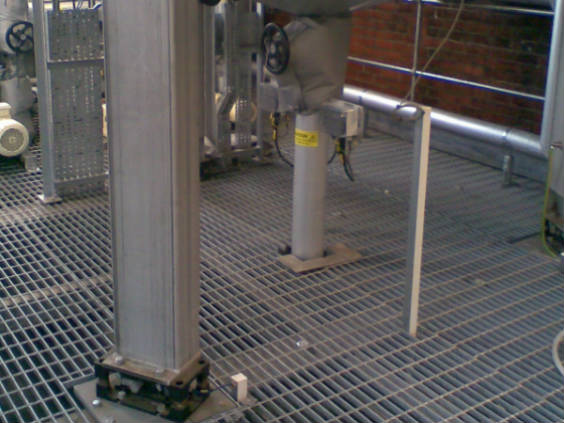

The MasterMount® is a unique, patented and cost-effective load cell/mounting accessory combination for silo, tank, hopper or vessel weighing. Installation is made easier, safer and much faster using this simple innovative design. Load cell installation/replacement can be carried out in only a few minutes.

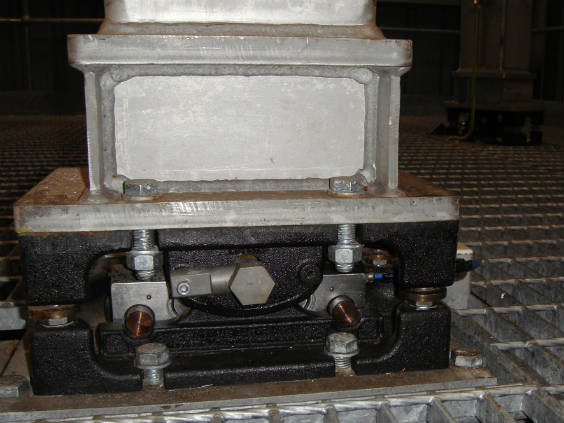

A high precision stainless steel VC3500 double shear beam load cell, protected to IP68/IP69K, combines with a painted alloy steel weighing module having an integrated cam mechanism. This is an ideal combination for applications requiring wash-down cleaning, even in hazardous (ATEX/IECEx) areas. The load cell’s ATEX certification eliminates the need for safety barriers in dust zones 20, 21, 22.
Key features:
Load cell installation/removal under load, in just 1-2 minutes, without any lifting jacks or dummy load cells – minimal production downtime
Low profile design
Capacity range 2,000kg to 30,000kg with one size of load cell and mounting accessory
Fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K
ATEX approved version for all zones (no need for safety barriers in dust zones 20, 21 and 22)
IECEx approved version for all zones
Options: Parylene coating for the load cell when used in extremely harsh environments, high temperature and amplified output (4-20mA) versions
Typical applications:

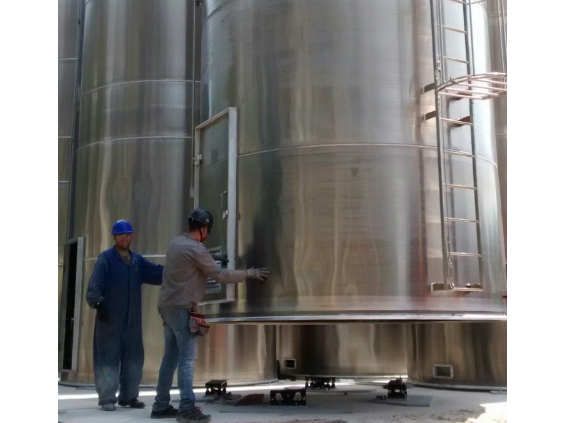

Silo, hopper or tank weighing, even in hazardous areas
Ask a question about this unique, cost-effective silo weighing solution.
For another unique weighing solution at capacities from 5kg to 5000kg the LeverMount® combination of a stainless steel mounting accessory and an OIML approved shear beam load cell is ideal.
