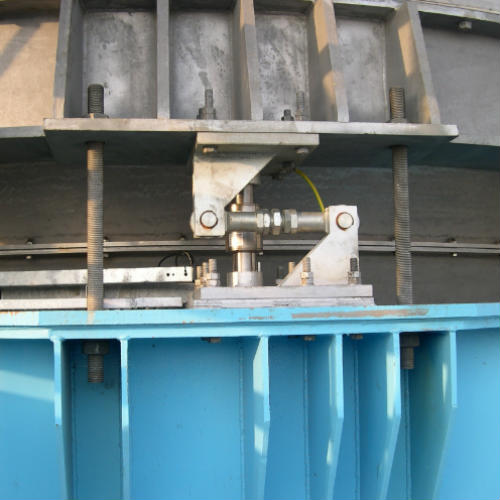

T34 Silo Mount Assembly (10.000kg-50.000kg)

The T34 Silo Mount is a load cell/weighing module combination that provides a legal-for-trade weighing solution for silos, tanks and vessels up to 60,000kg per load cell, especially in remote locations where the risk of lightning strikes is significant.  For non-legal-for-trade applications this model is model is available up to 1,000,000kg (1000 tonnes) per load cell.
The T34 stainless steel load cell is a compressionÂload cell with a self-centring rocker columnÂdesign.  Its fully welded and hermetically sealed construction provides protection to IP68/IP69K, with integral lighting protection as standard.  It has OIML C4 approval up to 60,000kg.  Excellent accuracy and repeatability is assured.

SKU: t34 Categories: ,
Description
Reviews (0)

Key features:
Capacity range from 10,000kg to 1,000,000kg
Stainless steel load cell; zinc plated alloy steel mounting accessory
Simple installation
In-built surge arrestors (GDTs) for lightning protection as standard
Legal-for-trade approval to OIML R60 C4 (4000 divisions) up to 60 tonnes capacity
Fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K
ATEXÂapproved version for all zones (no need for safety barriers in dust zones 20, 21 or 22)
Typical applications:
High capacity silo, tank and vessel weighing
Weighing in remote locations with a lightning risk
