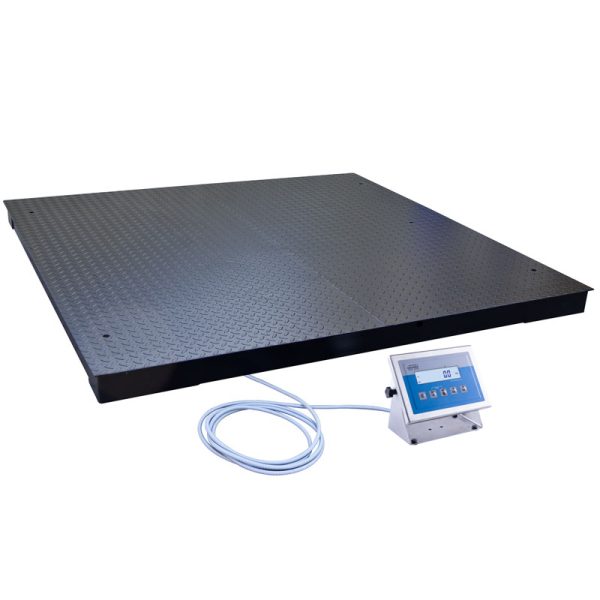

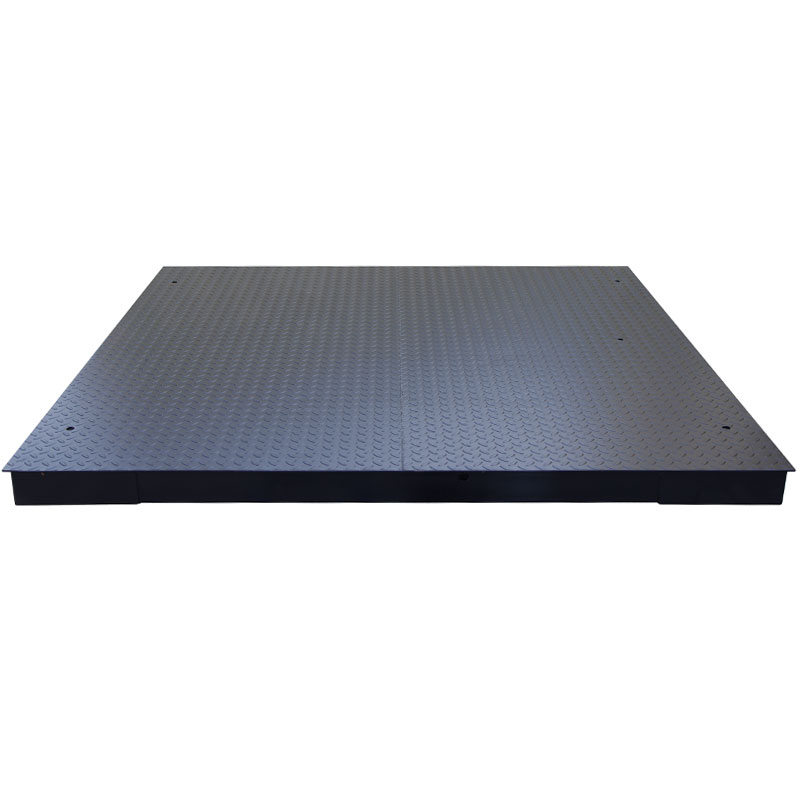

No matter where you place the load on the platform, the result will always be correct. This is due to the four sensors built into the platform. You will appreciate this especially when weighing an irregularly shaped object.
| Maximum capacity [Max] | 1.5 kg |
| Minimum load | 10 g |
| Readability [d] | 0.5 g |
| Verification unit [e] | 0.5 g |
| Tare range | -1.5 kg |
| Max readability for non-verified scale | 0.2 g |
| OIML Class | III |
| Display | 7” graphic colour |
| Weighing pan dimensions | 300×300 mm |
| Packaging dimensions | 390×570×390 mm |
| Net weight | 9.3 kg |
| Gross weight | 10.7 kg |
| Protection class | IP 65 construction, IP 66/68 terminal |
| Keypad | membrane |
| Construction | mild steel ST3S |
| Weighing pan material | Stainless steel AISI304 |
| Communication interface | RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU |
| Optional interfaces | USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V |
| Power supply | 100 – 240 V AC 50/60 Hz |
| Power consumption max. | 25 W |
| Optional power supply | 12 – 24 V DC |
| Operating temperature | -10 – +40 °C |
| Storage temperature | -10 – +50 °C |
| Relative humidity | 10% – 80% RH no condensation |

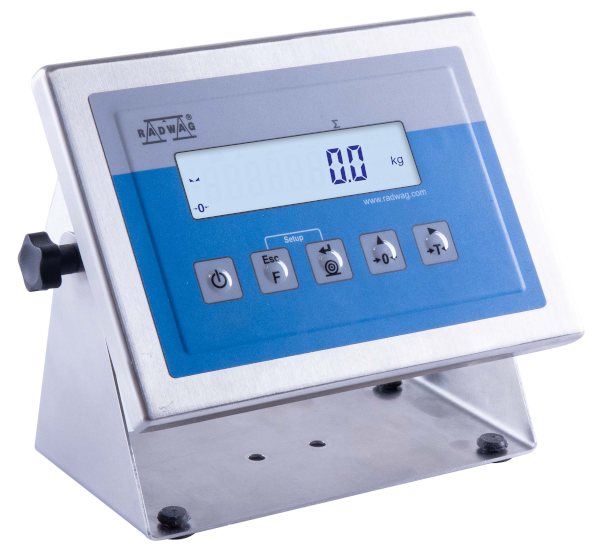

| Indicator | PUE HX7 |
| Number of buttons | 22 |
| Max number of platforms | 2 |
